Here's a Spring Boot project template/tutorial that I've put together to try to get some best practices codified on how to quickly throw together a service.

Full code here for the impatient: https://github.com/marksteele/SpringBootReactFullStackSample

Here's what it'll look like when we're done (note my amazing front-end skills)

null

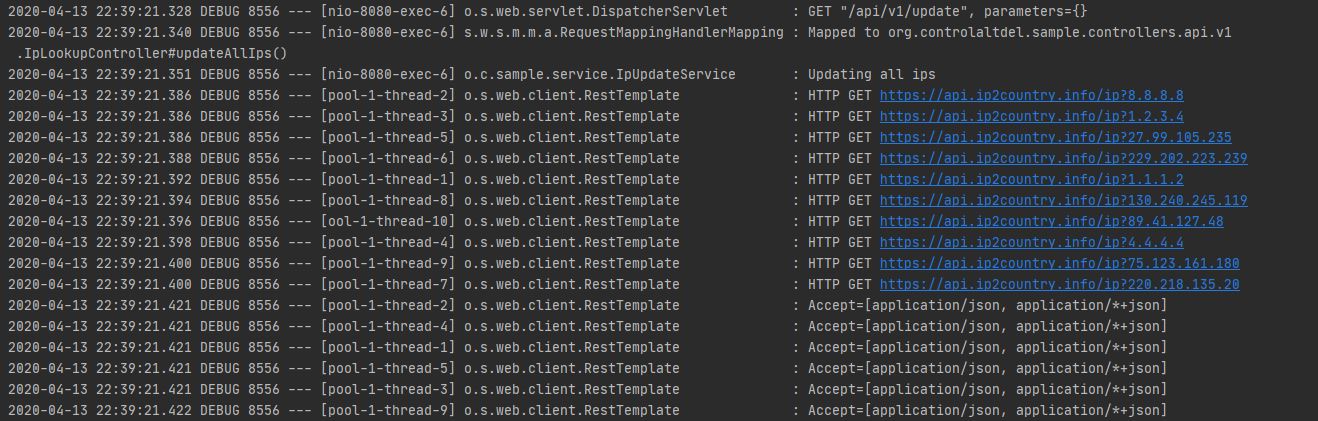

We'll cover: REST endpoints, scheduled tasks, thread-pools to parallelize work, React, MySQL, 12-factor app best practices, OAuth2 (google), monitoring, unit testing, code coverage, project mess detection, spotbugs, DevOps and more!

This blog post is going to be a bit of a beast, so before I dig too deep let's set the stage on what we're trying to accomplish. First, we'd like to build a modern front-end and back-end system. For the front-end, we'll use React. For the back-end, we'll use Java+Spring Boot.

Our fictitious project is called Visitors. We have been tasked to build a form where users can enter an IP address, and we are supposed to save it to a database. We'd also like to see the entries in the database as well.

The stakeholders in this type of project typically are: The product owner, front-end engineer, back-end engineer, QA, DevOps & Security. Hopefully by the time we're done, everyone's happy.

In this example, we want the front-end to be packaged and deployed inside the back-end application. For this reason, we're going to co-locate the front-end and back-end code in the same repo, and make it relatively easy for both front-end or back-end developers to work on.

On the back-end side, we'd like some APIs:

List all IPs for which we don't have country information for.
Lookup the location of an IP address in real-time.
Trigger a background task that scans the database immediately and attempts to geo-locate all unknown IP locations.
An API endpoint to add new IPs
An API endpoint to view all the entries in the table.

In addition to the APIs, we'd also want the back-end to trigger resolving all unknown IP locations on a daily basis.

Furthermore, as the numbers of entries in the database might get large, we'd want the geo-lookups to be done in parallel, several simultaneously.

We're always security conscious, so we'll want the whole shebang to be protected via OAuth2, and authenticate via our google domain. We also want our backend/front-end protected with CSRF.

We'll use Maven and we want to create a fat jar that can run everything stand-alone. That'll make deploying it easy.

Our DevOps wants everything configured via environment variables.

To help with quality, consistency, and security we'll run the following checks against the code every time we build it:

Unit tests,

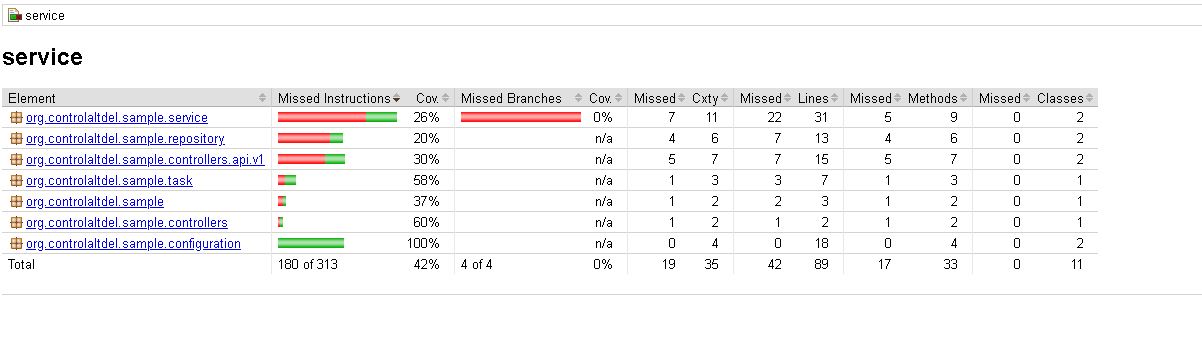

Unit test code coverage
Code styling (google coding standard)
Static code analysis
- Spotbugs
- Project mess detection
- Copy paste detection
Automatic detection of vulnerable dependancies (OWASP)

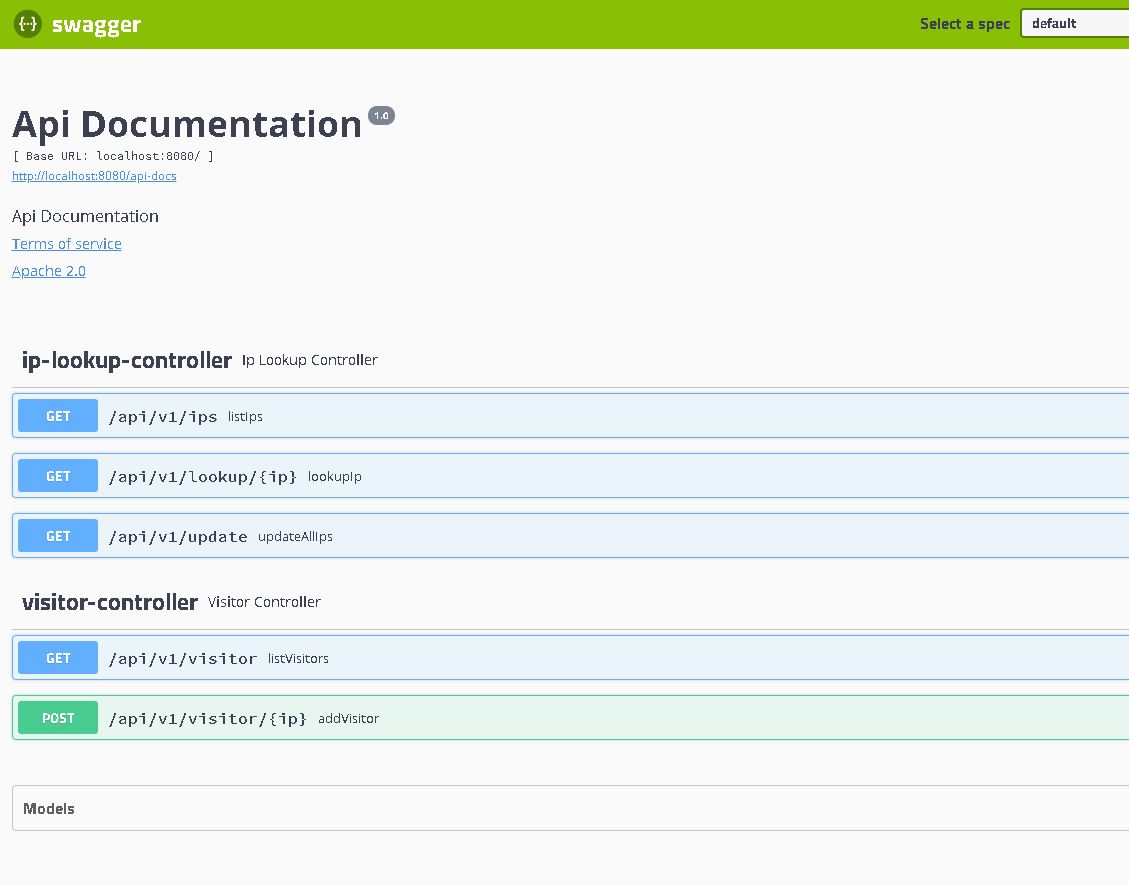

Also, it'd be nice if the APIs were documented somehow.

Phew! Let's get crackin.

Backend

All rightie. First things first, it is assumed that you know your way around your IDE and have used maven before. You'll also need to have a MySQL server up and running with credentials, and a database called 'sample'.

Config

Here's the pom.xml for this project. It's got all the goodies inside.

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362


<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.3.0.M4</version>
		<relativePath/> <!-- lookup parent from repository -->
	</parent>
	<groupId>org.controlaltdel.sample</groupId>
	<artifactId>service</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<name>${project.artifactId}</name>
	<description>Sample Project</description>

	<properties>
		<java.version>11</java.version>
		<maven.compiler.source>${java.version}</maven.compiler.source>
		<maven.compiler.target>${java.version}</maven.compiler.target>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
		<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
		<!-- Dependencies -->
		<javax-xml-bind.version>2.3.1</javax-xml-bind.version>
		<logback-json.version>0.1.5</logback-json.version>
		<mockito.version>2.23.4</mockito.version>
		<!-- Build settings -->
		<dependency-check-maven.version>5.2.2</dependency-check-maven.version>
		<maven-surefire-plugin.version>2.22.2</maven-surefire-plugin.version>
		<jacoco-maven-plugin.version>0.8.5</jacoco-maven-plugin.version>
		<maven-checkstyle-plugin.version>3.1.1</maven-checkstyle-plugin.version>
		<maven-pmd-plugin.version>3.12.0</maven-pmd-plugin.version>
		<spotbugs-maven-plugin.version>3.1.12.2</spotbugs-maven-plugin.version>
		<build-tools.version>0.0.6</build-tools.version>
		<coverage.minimum>0.75</coverage.minimum>
		<cpd.tokens>150</cpd.tokens>
		<pmd.priority>4</pmd.priority>
	</properties>

	<dependencies>

		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
			<version>5.1.46</version>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-jdbc</artifactId>
		</dependency>
		<dependency>
			<groupId>com.pivovarit</groupId>
			<artifactId>parallel-collectors</artifactId>
			<version>1.1.0</version>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-actuator</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-oauth2-client</artifactId>
		</dependency>

		<dependency>
			<groupId>org.springframework.security</groupId>
			<artifactId>spring-security-oauth2-jose</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-security</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-webmvc</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-configuration-processor</artifactId>
			<optional>true</optional>
		</dependency>
		<dependency>
			<groupId>org.springframework.cloud</groupId>
			<artifactId>spring-cloud-context</artifactId>
			<version>2.1.2.RELEASE</version>
		</dependency>
		<dependency>
			<groupId>org.projectlombok</groupId>
			<artifactId>lombok</artifactId>
			<optional>true</optional>
		</dependency>
		<dependency>
			<groupId>io.springfox</groupId>
			<artifactId>springfox-swagger2</artifactId>
			<version>2.9.2</version>
		</dependency>
		<dependency>
			<groupId>io.springfox</groupId>
			<artifactId>springfox-swagger-ui</artifactId>
			<version>2.9.2</version>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
			<exclusions>
				<exclusion>
					<groupId>org.junit.vintage</groupId>
					<artifactId>junit-vintage-engine</artifactId>
				</exclusion>
			</exclusions>
		</dependency>

		<dependency>
			<groupId>org.springframework.security</groupId>
			<artifactId>spring-security-test</artifactId>
			<scope>test</scope>
		</dependency>

		<dependency>
			<groupId>org.mockito</groupId>
			<artifactId>mockito-core</artifactId>
			<version>${mockito.version}</version>
			<scope>test</scope>
		</dependency>
	</dependencies>

	<build>
		<finalName>service</finalName>
		<plugins>
			<plugin>
				<!-- To generate report, run: mvn dependency-check:aggregate -->
				<groupId>org.owasp</groupId>
				<artifactId>dependency-check-maven</artifactId>
				<version>${dependency-check-maven.version}</version>
			</plugin>
			<plugin>
				<groupId>org.apache.maven.plugins</groupId>
				<artifactId>maven-surefire-plugin</artifactId>
				<version>${maven-surefire-plugin.version}</version>

				<configuration>
					<useSystemClassLoader>false</useSystemClassLoader>
					<trimStackTrace>false</trimStackTrace>
				</configuration>
			</plugin>

			<plugin>
				<groupId>org.jacoco</groupId>
				<artifactId>jacoco-maven-plugin</artifactId>
				<version>${jacoco-maven-plugin.version}</version>

				<configuration>
					<excludes>
						<exclude>org/controlaltdel/**/model/**</exclude>
					</excludes>

					<rules>
						<rule>
							<element>BUNDLE</element>

							<limits>
								<limit>
									<counter>INSTRUCTION</counter>
									<value>COVEREDRATIO</value>
									<minimum>${coverage.minimum}</minimum>
								</limit>
							</limits>
						</rule>
					</rules>
				</configuration>

				<executions>
					<execution>
						<id>jacoco-initialize</id>

						<goals>
							<goal>prepare-agent</goal>
						</goals>
					</execution>

					<execution>
						<id>jacoco-check</id>
						<phase>test</phase>

						<goals>
							<goal>report</goal>
							<goal>check</goal>
						</goals>
					</execution>
				</executions>
			</plugin>

			<plugin>
				<groupId>org.apache.maven.plugins</groupId>
				<artifactId>maven-checkstyle-plugin</artifactId>
				<version>${maven-checkstyle-plugin.version}</version>

				<configuration>
					<consoleOutput>true</consoleOutput>
					<failsOnError>true</failsOnError>
					<failOnViolation>true</failOnViolation>
					<violationSeverity>warning</violationSeverity>
					<linkXRef>false</linkXRef>
					<encoding>${project.build.sourceEncoding}</encoding>
					<configLocation>google_checks.xml</configLocation>
					<suppressionsFileExpression>checkstyle.suppressions.file</suppressionsFileExpression>
					<excludes>org/controlaltdel/**/model/**
					</excludes>
				</configuration>

				<executions>
					<execution>
						<id>checkstyle-check</id>
						<phase>test</phase>

						<goals>
							<goal>check</goal>
						</goals>
					</execution>
				</executions>
			</plugin>

			<plugin>
				<groupId>org.apache.maven.plugins</groupId>
				<artifactId>maven-pmd-plugin</artifactId>
				<version>${maven-pmd-plugin.version}</version>

				<configuration>
					<linkXRef>false</linkXRef>
					<aggregate>true</aggregate>
					<printFailingErrors>true</printFailingErrors>
					<sourceEncoding>${project.build.sourceEncoding}</sourceEncoding>
					<minimumPriority>${pmd.priority}</minimumPriority>
					<minimumTokens>${cpd.tokens}</minimumTokens>
					<targetJdk>${java.version}</targetJdk>
					<rulesets>
						<ruleset>pmd.xml</ruleset>
					</rulesets>
				</configuration>

				<executions>
					<execution>
						<id>pmd-check</id>
						<phase>test</phase>

						<goals>
							<goal>pmd</goal>
							<goal>cpd</goal>
						</goals>
					</execution>
				</executions>
			</plugin>

			<plugin>
				<groupId>com.github.spotbugs</groupId>
				<artifactId>spotbugs-maven-plugin</artifactId>
				<version>${spotbugs-maven-plugin.version}</version>

				<configuration>
					<effort>Max</effort>
					<threshold>Low</threshold>
					<failOnError>true</failOnError>
				</configuration>

				<executions>
					<execution>
						<id>spotbugs-check</id>
						<phase>test</phase>

						<goals>
							<goal>spotbugs</goal>
						</goals>
					</execution>
				</executions>
			</plugin>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>

			<plugin>
				<groupId>com.github.eirslett</groupId>
				<artifactId>frontend-maven-plugin</artifactId>
				<version>1.9.1</version>
				<configuration>
					<workingDirectory>frontend</workingDirectory>
					<installDirectory>target</installDirectory>
				</configuration>
				<executions>
					<execution>
						<id>install node and npm</id>
						<goals>
							<goal>install-node-and-npm</goal>
						</goals>
						<configuration>
							<nodeVersion>v12.16.1</nodeVersion>
							<npmVersion>6.13.4</npmVersion>
						</configuration>
					</execution>
					<execution>
						<id>npm install</id>
						<goals>
							<goal>npm</goal>
						</goals>
						<configuration>
							<arguments>install</arguments>
						</configuration>
					</execution>
					<execution>
						<id>npm run build</id>
						<goals>
							<goal>npm</goal>
						</goals>
						<configuration>
							<arguments>run build</arguments>
						</configuration>
					</execution>
				</executions>
			</plugin>

			<plugin>
				<artifactId>maven-antrun-plugin</artifactId>
				<executions>
					<execution>
						<phase>generate-resources</phase>
						<configuration>
							<target>
								<copy todir="${project.build.directory}/classes/public">
									<fileset dir="${project.basedir}/frontend/build"/>
								</copy>
							</target>
						</configuration>
						<goals>
							<goal>run</goal>
						</goals>
					</execution>
				</executions>
			</plugin>
		</plugins>
	</build>

	<repositories>
		<repository>
			<id>spring-milestones</id>
			<name>Spring Milestones</name>
			<url>https://repo.spring.io/milestone</url>
		</repository>
	</repositories>
	<pluginRepositories>
		<pluginRepository>
			<id>spring-milestones</id>
			<name>Spring Milestones</name>
			<url>https://repo.spring.io/milestone</url>
		</pluginRepository>
	</pluginRepositories>

</project>

Next we want to create our app config file: src\main\resources\bootstrap.yml

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60


spring:
  main:
    banner-mode: "off" # Requires to be quoted
  application:
    name: service
  datasource.driverClassName: com.mysql.jdbc.Driver
  datasource:
    url: "jdbc:mysql://${DATABASE_HOST}:${DATABASE_PORT}/${DATABASE_NAME}?useSSL=false&useConfigs=maxPerformance"
    username: "${DATABASE_USER}"
    password: "${DATABASE_PASSWORD}"
    hikari:
      connectionTimeout: 3000
      maxLifetime: 60000
      prepStmtCacheSize: 250
      prepStmtCacheSqlLimit: 2048
      connectionTestQuery: "SELECT 1"
  http:
    log-request-details: "${LOG_HTTP_REQUEST_DETAILS:true}"
  security:
    oauth2:
      client:
        registration:
          google:
            client-id: "${GOOGLE_OAUTH2_CLIENT_ID}"
            client-secret: "${GOOGLE_OAUTH2_CLIENT_SECRET}"

logging:
  level:
    org:
      springframework:
        web: "${LOG_LEVEL:DEBUG}"
      controlaltdel:
        sample:
          service: "${LOG_LEVEL:DEBUG}"

server:
  error:
    whitelabel:
      enabled: "false"
  port: 8080
  servlet:
    context-path: /

management:
  endpoint:
    metrics:
      enabled: true
  endpoints:
    web:
      exposure:
        include: "*"
  server:
    port: 8001
    servlet:
      context-path: /
springfox:
  documentation:
    swagger:
      v2:
        path: "/api-docs"

For logging, we also want a config: src\main\resources\logback-spring.xml

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21


<?xml version="1.0" encoding="UTF-8"?>
<configuration>
    <springProfile name="!json-output">
        <include resource="org/springframework/boot/logging/logback/base.xml"/>
    </springProfile>

    <springProfile name="json-output">
        <appender name="json" class="ch.qos.logback.core.ConsoleAppender">
            <layout class="ch.qos.logback.contrib.json.classic.JsonLayout">
                <jsonFormatter class="ch.qos.logback.contrib.jackson.JacksonJsonFormatter">
                    <prettyPrint>false</prettyPrint>
                </jsonFormatter>
                <timestampFormat>yyyy-MM-dd' 'HH:mm:ss.SSS</timestampFormat>
            </layout>
        </appender>

        <root level="all">
            <appender-ref ref="json" />
        </root>
    </springProfile>
</configuration>

That's it for config, now moving on to the actual code itself. Thankfully Spring Boot helps remove lots of boilerplate. Also there is very little business logic in this codebase, which should keep things easy to understand.

Model

Models in this code is pretty straight forward. We'll use one model to represent the entries in the database, and one model to represent the values we'll receive from the geo-location API we'll be talking to.

src\main\java\org\controlaltdel\sample\model\IpLookupResponse.java:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18


package org.controlaltdel.sample.model;

import lombok.AllArgsConstructor;
import lombok.Builder;
import lombok.Data;
import lombok.NoArgsConstructor;

@Data
@Builder
@NoArgsConstructor
@AllArgsConstructor
public class IpLookupResponse {

  private String countryCode;
  private String countryCode3;
  private String countryName;
  private String countryEmoji;
}

src\main\java\org\controlaltdel\sample\model\Visitor.java:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20


package org.controlaltdel.sample.model;

import lombok.AllArgsConstructor;
import lombok.Builder;
import lombok.Data;
import lombok.NoArgsConstructor;
import lombok.NonNull;

@Data
@Builder
@NoArgsConstructor
@AllArgsConstructor
public class Visitor {

  @NonNull
  private Integer id;
  @NonNull
  private String ip;
  private String countryCode;
}

Database

To talk to the database, we'll also keep things super simple and use JdbcTemplate. We'll have one repository that deals with IP mapping related things, and one that deals with adding entries and viewing them.

src\main\java\org\controlaltdel\sample\repository\VisitorRepository.java:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51


package org.controlaltdel.sample.repository;

import java.util.List;
import org.controlaltdel.sample.model.Visitor;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.jdbc.core.BeanPropertyRowMapper;
import org.springframework.jdbc.core.JdbcTemplate;
import org.springframework.stereotype.Component;

@Component
public class VisitorRepository {

  /**
   * Query to retrieve all visitors.
   */
  private static final String LIST_VISITORS_SQL = "SELECT * FROM tblVisitors";

  /**
   * Query to add a visitor.
   */
  private static final String INSERT_SQL = "INSERT INTO tblVisitors VALUES(NULL,?,NULL)";

  private JdbcTemplate mysqlJdbcTemplate;

  @Autowired
  public VisitorRepository(final JdbcTemplate mysqlJdbcTemplate) {
    this.mysqlJdbcTemplate = mysqlJdbcTemplate;
  }

  /**
   * Retrieves all visitors.
   *
   * @return A list of visitors.
   */
  public List<Visitor> listVisitors() {
    return this.mysqlJdbcTemplate
        .query(LIST_VISITORS_SQL, new BeanPropertyRowMapper(Visitor.class));
  }

  /**
   * Updates the country code for a given IP address.
   *
   * @param ip An IP address, as a string.
   */
  public void addVisitor(final String ip) {
    this.mysqlJdbcTemplate.update(
        INSERT_SQL,
        ip
    );
  }
}

src\main\java\org\controlaltdel\sample\repository\IpRepository.java:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52


package org.controlaltdel.sample.repository;


import java.util.List;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.jdbc.core.JdbcTemplate;
import org.springframework.stereotype.Component;

@Component
public class IpRepository {

  /**
   * Query to retrieve all unmapped IP addresses.
   */
  private static final String GRAB_UNMAPPED_IPS =
      "SELECT ip FROM tblVisitors WHERE countryCode IS NULL";

  /**
   * Query to update a IP's information.
   */
  private static final String UPDATE_SQL = "UPDATE tblVisitors SET countryCode = ? WHERE ip = ?";

  private JdbcTemplate mysqlJdbcTemplate;

  @Autowired
  public IpRepository(final JdbcTemplate mysqlJdbcTemplate) {
    this.mysqlJdbcTemplate = mysqlJdbcTemplate;
  }

  /**
   * Retrieves all ips that don't have country mapping.
   *
   * @return A list of ips.
   */
  public List<String> listUnmappedIps() {
    return this.mysqlJdbcTemplate.queryForList(String.format(GRAB_UNMAPPED_IPS), String.class);
  }

  /**
   * Updates the country code for a given IP address.
   *
   * @param ip          An IP address, as a string.
   * @param countryCode The country code.
   */
  public void updateIp(final String ip, final String countryCode) {
    this.mysqlJdbcTemplate.update(
        UPDATE_SQL,
        countryCode,
        ip
    );
  }
}

App boilerplate

Nothing fancy here, just a regular Spring Boot App. Note that we do add the @EnableScheduling annotation, which will allow us to schedule tasks to run at regular/specific intervals. We'll need that later on for our daily task run.

src\main\java\org\controlaltdel\sample\Application.java

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14


package org.controlaltdel.sample;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.scheduling.annotation.EnableScheduling;

@SpringBootApplication
@EnableScheduling
public class Application {

  public static void main(String[] args) {
    SpringApplication.run(Application.class, args);
  }
}

Web Security Configuration

Here we'll extend WebSecurityConfigurerAdapter and override the configure method to produce the configuration which will all unfettered access some paths, and require an OAuth2 login for everything else.

We'll configure CSRF to add a token to a cookie returned to the browser. Our front-end app will have to pass that back in an HTTP header in order for the backend to accept the requests. This will mitigate CSRF attacks.

For the purpose of brevity, we're going to disable CORS, although that's probably something you would want to configure for a real non-trivial service.

src\main\java\org\controlaltdel\sample\configuration\SecurityConfiguration.java:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23


package org.controlaltdel.sample.configuration;

import org.springframework.context.annotation.Configuration;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;

@Configuration
public class SecurityConfiguration extends WebSecurityConfigurerAdapter {

  @Override
  protected void configure(final HttpSecurity http) throws Exception {
    http.csrf().csrfTokenRepository(CookieCsrfTokenRepository.withHttpOnlyFalse());
    http.cors().disable();
    http
        .antMatcher("/**")
        .authorizeRequests()
        .antMatchers("/login**", "/webjars/**", "/error**", "/actuator/**")
        .permitAll()
        .anyRequest()
        .authenticated().and()
        .oauth2Login();
  }
}

Automatically documenting our APIs

To automatically generate API documentation for our APIs, let's setup Swagger.

src\main\java\org\controlaltdel\sample\configuration\SwaggerConfiguration.java:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28


package org.controlaltdel.sample.configuration;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

@Configuration
@EnableSwagger2
public class SwaggerConfiguration {

  /**
   * Docket.
   *
   * @return A docket.
   */
  @Bean
  public Docket docket() {
    return new Docket(DocumentationType.SWAGGER_2)
        .select()
        .apis(RequestHandlerSelectors.basePackage("org.controlaltdel.sample.controllers.api"))
        .paths(PathSelectors.any())
        .build();
  }
}

Once our service is running, this will expose an HTTP endpoint that will display the API documentation. (http://localhost:8080/swagger-ui.html)

null

Services

Our back-end code does two types of operations which we'll be building out API endpoints for. We'll define those in services, which we'll expose using the web controllers.

The first one, allows us to perform lookups on a public ip2country API (https://api.ip2country.info)

org\controlaltdel\sample\service\IpLookupService.java:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37


package org.controlaltdel.sample.service;

import java.util.Optional;
import org.controlaltdel.sample.model.IpLookupResponse;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.stereotype.Component;
import org.springframework.web.client.RestClientException;
import org.springframework.web.client.RestTemplate;

@Component
public class IpLookupService {

  private static final Logger log = LoggerFactory.getLogger(IpLookupService.class);
  private static final String API_URL = "https://api.ip2country.info/ip?%s";

  /**
   * Query the IP2Country API.
   *
   * @param ip The IP address to lookup.
   * @return A string that represents the country code, or null.
   */
  public String lookupIp(final String ip) {
    String countryCode = "unknown";
    RestTemplate restTemplate = new RestTemplate();
    try {
      IpLookupResponse res = restTemplate
          .getForObject(String.format(API_URL, ip), IpLookupResponse.class);
      if (res != null) {
        countryCode = Optional.ofNullable(res.getCountryCode()).orElse("unknown");
      }
    } catch (RestClientException e) {
      log.debug(e.getMessage());
    }
    return countryCode;
  }
}

Our second service is concerned with updating all the unmapped IP addresses in our database. One thing to note here is that we are creating a thread pool and parallelizing the API calls. We use the com.pivovarit.collectors.ParallelCollectors library which greatly simplifies the logic in handling the Futures.

src\main\java\org\controlaltdel\sample\service\IpUpdateService.java:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54


package org.controlaltdel.sample.service;

import static com.pivovarit.collectors.ParallelCollectors.parallelToMap;

import java.util.concurrent.ExecutorService;
import java.util.concurrent.Executors;
import org.controlaltdel.sample.repository.IpRepository;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;

@Component
public class IpUpdateService {

  private static final Logger log = LoggerFactory.getLogger(IpUpdateService.class);
  private static final Integer PARALLEL_REQUESTS = 10;

  private IpRepository ipRepository;
  private IpLookupService ipLookupService;
  private ExecutorService executor;

  /**
   * Constructor.
   * @param ipRepository The IP repository.
   * @param ipLookupService The IP lookup service.
   */
  @Autowired
  public IpUpdateService(
      final IpRepository ipRepository,
      final IpLookupService ipLookupService) {
    this.ipRepository = ipRepository;
    this.ipLookupService = ipLookupService;
    this.executor = Executors.newFixedThreadPool(PARALLEL_REQUESTS);
  }

  /**
   * Updates all country codes that aren't set.
   */
  public void updateIps() {
    log.debug("Updating all ips");
    this.ipRepository
        .listUnmappedIps()
        .stream()
        .collect(parallelToMap(i -> i, i -> this.ipLookupService.lookupIp(i), this.executor,
            PARALLEL_REQUESTS))
        .join()
        .forEach((ip, countryCode) -> {
          if (!"unknown".equals(countryCode)) {
            this.ipRepository.updateIp(ip, countryCode);
          }
        });
  }
}

Here we can see 10 parallel requests being launched simultaneously:

null

Web Controllers

We're going to create three web controllers. The first one is the controller that will handle redirecting URL paths to our single-page web app. This will allow folks to do browser refreshes and not get a 404.

org\controlaltdel\sample\controllers\RedirectController.java:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14


package org.controlaltdel.sample.controllers;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.GetMapping;

@Controller
public class RedirectController {

  @GetMapping(value = {"/{regex:\\w+}", "/**/{regex:\\w+}"})
  public String forward404() {
    return "forward:/";
  }

}

The next two web controllers we'll need are the API controllers.

The IP lookup controller can list all unmapped IPs, perform a realtime IP geo-location lookup, and trigger a mass-update to lookup all unmapped IPs.

src\main\java\org\controlaltdel\sample\controllers\api\v1\IpLookupController.java:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75


package org.controlaltdel.sample.controllers.api.v1;

import java.io.IOException;
import java.util.List;
import org.controlaltdel.sample.repository.IpRepository;
import org.controlaltdel.sample.service.IpLookupService;
import org.controlaltdel.sample.service.IpUpdateService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.http.HttpStatus;
import org.springframework.http.ResponseEntity;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.ResponseBody;

@Controller
@RequestMapping("/api/v1")
public class IpLookupController {

  private final IpUpdateService ipUpdateService;
  private final IpLookupService ipLookupService;
  private final IpRepository ipRepository;

  /**
   * Constructor.
   * @param ipRepository The IP Repository.
   * @param ipUpdateService The update service.
   * @param ipLookupService The IP lookup service.
   */
  @Autowired
  public IpLookupController(final IpRepository ipRepository,
      final IpUpdateService ipUpdateService,
      final IpLookupService ipLookupService) {
    this.ipUpdateService = ipUpdateService;
    this.ipLookupService = ipLookupService;
    this.ipRepository = ipRepository;
  }

  /**
   * Retrieves all unmapped IPs.
   *
   * @return A list of ips as strings.
   * @throws IOException IO exception.
   */
  @RequestMapping(value = "ips", method = RequestMethod.GET)
  @ResponseBody
  public ResponseEntity<List<String>> listIps() throws IOException {
    return new ResponseEntity<List<String>>(this.ipRepository.listUnmappedIps(), HttpStatus.OK);
  }

  /**
   * Fetches country code for a given IP.
   *
   * @param ip The ip.
   * @return A string containing country code.
   */
  @RequestMapping(value = "lookup/{ip}", method = RequestMethod.GET)
  @ResponseBody
  public ResponseEntity<String> lookupIp(final @PathVariable("ip") String ip) {
    return new ResponseEntity<String>(this.ipLookupService.lookupIp(ip), HttpStatus.OK);
  }

  /**
   * Updates all ips that are unmapped.
   *
   * @return HTTP status code accepted.
   */
  @RequestMapping(value = "update", method = RequestMethod.GET)
  @ResponseBody
  public ResponseEntity updateAllIps() {
    this.ipUpdateService.updateIps();
    return new ResponseEntity<>(HttpStatus.ACCEPTED);
  }
}

The Visitor controller allows us to add new visitors to our database and list all the visitor ips and country codes.

src\main\java\org\controlaltdel\sample\controllers\api\v1\VisitorController.java:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48


package org.controlaltdel.sample.controllers.api.v1;

import java.io.IOException;
import java.util.List;
import org.controlaltdel.sample.model.Visitor;
import org.controlaltdel.sample.repository.VisitorRepository;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.http.HttpStatus;
import org.springframework.http.ResponseEntity;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.ResponseBody;

@Controller
@RequestMapping("/api/v1")
public class VisitorController {
  private VisitorRepository visitorRepository;

  @Autowired
  public VisitorController(final VisitorRepository visitorRepository) {
    this.visitorRepository = visitorRepository;
  }

  /**
   * Retrieves all visitors.
   * @return The list of visitors
   */
  @RequestMapping(value = "visitor", method = RequestMethod.GET)
  @ResponseBody
  public ResponseEntity<List<Visitor>> listVisitors() throws IOException {
    return new ResponseEntity<List<Visitor>>(this.visitorRepository.listVisitors(), HttpStatus.OK);
  }

  /**
   * Add a visitor.
   * @param ip An IP.
   * @return An HTTP status code.
   */
  @RequestMapping(value = "visitor/{ip}", method = RequestMethod.POST)
  @ResponseBody
  public ResponseEntity addVisitor(final @PathVariable("ip") String ip) throws IOException {
    this.visitorRepository.addVisitor(ip);
    return new ResponseEntity<>(HttpStatus.ACCEPTED);
  }

}

Scheduled task

The last part of our back-end is the daily scheduled task. With the built-in scheduler that we added with the @EnableScheduler annotation on our Spring Boot Application, we can add a @Scheduled annotation with a cron expression to invoke a function on a regular interval.

src\main\java\org\controlaltdel\sample\task\DailyIpCountryUpdate.java:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30


package org.controlaltdel.sample.task;

import org.controlaltdel.sample.service.IpUpdateService;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.scheduling.annotation.Scheduled;
import org.springframework.stereotype.Component;

@Component
public class DailyIpCountryUpdate {

  private static final Logger log = LoggerFactory.getLogger(DailyIpCountryUpdate.class);
  private final IpUpdateService ipUpdateService;

  @Autowired
  public DailyIpCountryUpdate(final IpUpdateService ipUpdateService) {
    this.ipUpdateService = ipUpdateService;
  }

  /**
   * Scheduled task to update all ips that are unmapped. second, minute, hour, day of month, month,
   * day(s) of week
   */
  @Scheduled(cron = "0 0 2 * * ?")
  public void updateAllIps() {
    log.info("Running daily number update");
    this.ipUpdateService.updateIps();
  }
}

Frontend

We're going to assume that we've got a modern tool chain ready to go.

To create our front-end, we'll use

npx create-react-app frontend

Which will initialize an empty React app in our frontend/ folder.

To keep this already long write-up a bit shorter, I'll omit some of the front-end files which are boilerplate.

Setup

Nothing fancy here, just a few dependencies and a proxy setting that will allow us to keep our URI paths relative in the code.

frontend\package.json:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39


{
  "name": "frontend",
  "version": "0.1.0",
  "private": true,
  "dependencies": {
    "@material-ui/core": "^4.9.0",
    "@material-ui/icons": "^4.5.1",
    "@testing-library/jest-dom": "^4.2.4",
    "@testing-library/react": "^9.3.2",
    "@testing-library/user-event": "^7.1.2",
    "react": "^16.13.1",
    "react-dom": "^16.13.1",
    "react-router": "^5.1.2",
    "react-router-dom": "^5.1.2",
    "react-scripts": "3.4.1"
  },
  "proxy": "http://localhost:8080",
  "scripts": {
    "start": "react-scripts start",
    "build": "react-scripts build",
    "test": "react-scripts test",
    "eject": "react-scripts eject"
  },
  "eslintConfig": {
    "extends": "react-app"
  },
  "browserslist": {
    "production": [
      ">0.2%",
      "not dead",
      "not op_mini all"
    ],
    "development": [
      "last 1 chrome version",
      "last 1 firefox version",
      "last 1 safari version"
    ]
  }
}

Code

There are three files in this little app.

frontend\src\App.js:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17


import React from 'react';
import { Route, BrowserRouter as Router } from "react-router-dom";
import AddVisitor from "./Components/AddVisitor";
import ListVisitors from "./Components/ListVisitors";

import './App.css';

function App() {
  return (
    <Router>
        <Route exact path="/" component={AddVisitor} />
        <Route exact path="/visitors" component={ListVisitors} />
      </Router>
  );
}

export default App;

frontend\src\Components\AddVisitor.js:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49


import React from "react";
import TextField from "@material-ui/core/TextField";
import Button from "@material-ui/core/Button";
import { Link } from "react-router-dom";
import Typography from "@material-ui/core/Typography";
import Cookies from 'js-cookie';

export default function AddVisitor() {
    const [ip, setIp] = React.useState("");
    const handleIpChange = event => setIp(event.target.value);

    async function sendRequest() {
        const response = await fetch(
            `/api/v1/visitor/${ip}`,
            {
                method: "POST",
                headers: {
                    'X-XSRF-TOKEN':  Cookies.get('XSRF-TOKEN'),
                },
                credentials: "include",
            }
        );
        let status = await response.ok;
        console.log(status);
    }

    const handleSubmit = ip => {
        sendRequest(ip);
        setIp("");
    }
    return (
        <>
        <TextField
                id="ip"
                label="ip"
                type="string"
                onChange={handleIpChange}
              />
        <Button preventDefault onClick={handleSubmit}>
            Save
        </Button>
        <Link to="/visitors">
            <Typography align="left">
            List visitors
            </Typography>{" "}
        </Link>
        </>
    )
}

frontend\src\Components\ListVisitors.js:

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101


import React from "react";
import { makeStyles } from "@material-ui/core/styles";
import Table from "@material-ui/core/Table";
import TableBody from "@material-ui/core/TableBody";
import TableCell from "@material-ui/core/TableCell";
import TableContainer from "@material-ui/core/TableContainer";
import TableHead from "@material-ui/core/TableHead";
import TableRow from "@material-ui/core/TableRow";
import Paper from "@material-ui/core/Paper";
import Typography from "@material-ui/core/Typography";
import CircularProgress from "@material-ui/core/CircularProgress";
import { Link } from "react-router-dom";
import Cookies from 'js-cookie';

const useStyles = makeStyles(theme => ({
  table: {
    minWidth: 600
  },
  paper: {
    display: "flex",
    flexDirection: "column",
    justifyContent: "center",
    alignItems: "center",
    margin: `10px`,
    height: "100%",
    width: "99%",
    marginTop: theme.spacing(7)
  }
}));

export default function SimpleTable() {
  const classes = useStyles();

  const [data, updateData] = React.useState([]);
  const [firstLoad, setLoad] = React.useState(true);
  let isLoading = true;

  async function listVisitors() {
    let response = await fetch(
      "/api/v1/visitor",
      {
        method: "GET",
        headers: {
            'X-XSRF-TOKEN':  Cookies.get('XSRF-TOKEN'),
        },
        credentials: "include",
    }
      );
    let body = await response.json();
    updateData(body);
  }

  if (firstLoad) {
    listVisitors();
    setLoad(false);
  }

  if (data.length > 0) isLoading = false;

  return (
    <div className={classes.paper}>
      <Typography component="h1" variant="h5">
        Visitor List
      </Typography>

      {isLoading ? (
        <CircularProgress />
      ) : (
        <TableContainer
          style={{ width: "80%", margin: "0 10px" }}
          component={Paper}
        >
          <Table className={classes.table} aria-label="simple table">
            <TableHead>
              <TableRow>
                <TableCell align="center">ID</TableCell>
                <TableCell align="center">IP Address</TableCell>
                <TableCell align="center">Country Code</TableCell>
              </TableRow>
            </TableHead>
            <TableBody>
              {data?.map(row => (
                <TableRow key={row.id}>
                  <TableCell align="center">{row.id}</TableCell>
                  <TableCell align="center">{row.ip}</TableCell>
                  <TableCell align="center">{row.countryCode}</TableCell>
                </TableRow>
              ))}
            </TableBody>
          </Table>
        </TableContainer>
      )}
              <Link to="/">

        <Typography align="left">
          &#x2190; Add another visitor
        </Typography>{" "}
        </Link>
    </div>
  );
}

OAuth2 Setup

My little demo system uses OAuth2 to authenticate users against my domain (control-alt-del.org) which is hosted in Google. Heading on over to https://console.developers.google.com/

You'll need to have 'Google Cloud Platform' enabled in your Google Admin.

You'll need to create an application, then create OAuth2 credentials of type 'Web application'.

For this demo, I listed my Authorized Javascript Origins as:

And my Authorised redirect URI as "http://localhost:8080/login/oauth2/code/google"

For a real deployment, you'd want one set of credentials for local dev that would look like this, and one set for production which would have actual urls.

IDE Setup

Back-end

I'm using Intellij Idea, with pretty much stock settings. Before starting, I installed OpenJDK 11, and configured Intellij to use that installation.

I did import the google style

google_style.xml

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
539
540
541
542
543
544
545
546
547
548
549
550
551
552
553
554
555
556
557
558
559
560
561
562
563
564
565
566
567
568
569
570
571
572
573
574
575
576
577
578
579
580
581
582
583
584
585
586
587
588
589
590
591
592
593
594
595
596
597
598


<?xml version="1.0" encoding="UTF-8"?>
<code_scheme name="GoogleStyle">
  <option name="OTHER_INDENT_OPTIONS">
    <value>
      <option name="INDENT_SIZE" value="2" />
      <option name="CONTINUATION_INDENT_SIZE" value="4" />
      <option name="TAB_SIZE" value="2" />
      <option name="USE_TAB_CHARACTER" value="false" />
      <option name="SMART_TABS" value="false" />
      <option name="LABEL_INDENT_SIZE" value="0" />
      <option name="LABEL_INDENT_ABSOLUTE" value="false" />
      <option name="USE_RELATIVE_INDENTS" value="false" />
    </value>
  </option>
  <option name="INSERT_INNER_CLASS_IMPORTS" value="true" />
  <option name="CLASS_COUNT_TO_USE_IMPORT_ON_DEMAND" value="999" />
  <option name="NAMES_COUNT_TO_USE_IMPORT_ON_DEMAND" value="999" />
  <option name="PACKAGES_TO_USE_IMPORT_ON_DEMAND">
    <value />
  </option>
  <option name="IMPORT_LAYOUT_TABLE">
    <value>
      <package name="" withSubpackages="true" static="true" />
      <emptyLine />
      <package name="" withSubpackages="true" static="false" />
    </value>
  </option>
  <option name="RIGHT_MARGIN" value="100" />
  <option name="JD_ALIGN_PARAM_COMMENTS" value="false" />
  <option name="JD_ALIGN_EXCEPTION_COMMENTS" value="false" />
  <option name="JD_P_AT_EMPTY_LINES" value="false" />
  <option name="JD_KEEP_EMPTY_PARAMETER" value="false" />
  <option name="JD_KEEP_EMPTY_EXCEPTION" value="false" />
  <option name="JD_KEEP_EMPTY_RETURN" value="false" />
  <option name="KEEP_CONTROL_STATEMENT_IN_ONE_LINE" value="false" />
  <option name="KEEP_BLANK_LINES_BEFORE_RBRACE" value="0" />
  <option name="KEEP_BLANK_LINES_IN_CODE" value="1" />
  <option name="BLANK_LINES_AFTER_CLASS_HEADER" value="0" />
  <option name="ALIGN_MULTILINE_PARAMETERS" value="false" />
  <option name="ALIGN_MULTILINE_FOR" value="false" />
  <option name="CALL_PARAMETERS_WRAP" value="1" />
  <option name="METHOD_PARAMETERS_WRAP" value="1" />
  <option name="EXTENDS_LIST_WRAP" value="1" />
  <option name="THROWS_KEYWORD_WRAP" value="1" />
  <option name="METHOD_CALL_CHAIN_WRAP" value="1" />
  <option name="BINARY_OPERATION_WRAP" value="1" />
  <option name="BINARY_OPERATION_SIGN_ON_NEXT_LINE" value="true" />
  <option name="TERNARY_OPERATION_WRAP" value="1" />
  <option name="TERNARY_OPERATION_SIGNS_ON_NEXT_LINE" value="true" />
  <option name="FOR_STATEMENT_WRAP" value="1" />
  <option name="ARRAY_INITIALIZER_WRAP" value="1" />
  <option name="WRAP_COMMENTS" value="true" />
  <option name="IF_BRACE_FORCE" value="3" />
  <option name="DOWHILE_BRACE_FORCE" value="3" />
  <option name="WHILE_BRACE_FORCE" value="3" />
  <option name="FOR_BRACE_FORCE" value="3" />
  <option name="SPACE_BEFORE_ARRAY_INITIALIZER_LBRACE" value="true" />
  <AndroidXmlCodeStyleSettings>
    <option name="USE_CUSTOM_SETTINGS" value="true" />
    <option name="LAYOUT_SETTINGS">
      <value>
        <option name="INSERT_BLANK_LINE_BEFORE_TAG" value="false" />
      </value>
    </option>
  </AndroidXmlCodeStyleSettings>
  <JSCodeStyleSettings>
    <option name="INDENT_CHAINED_CALLS" value="false" />
  </JSCodeStyleSettings>
  <Python>
    <option name="USE_CONTINUATION_INDENT_FOR_ARGUMENTS" value="true" />
  </Python>
  <TypeScriptCodeStyleSettings>
    <option name="INDENT_CHAINED_CALLS" value="false" />
  </TypeScriptCodeStyleSettings>
  <XML>
    <option name="XML_ALIGN_ATTRIBUTES" value="false" />
    <option name="XML_LEGACY_SETTINGS_IMPORTED" value="true" />
  </XML>
  <codeStyleSettings language="CSS">
    <indentOptions>
      <option name="INDENT_SIZE" value="2" />
      <option name="CONTINUATION_INDENT_SIZE" value="4" />
      <option name="TAB_SIZE" value="2" />
    </indentOptions>
  </codeStyleSettings>
  <codeStyleSettings language="ECMA Script Level 4">
    <option name="KEEP_BLANK_LINES_IN_CODE" value="1" />
    <option name="ALIGN_MULTILINE_PARAMETERS" value="false" />
    <option name="ALIGN_MULTILINE_FOR" value="false" />
    <option name="CALL_PARAMETERS_WRAP" value="1" />
    <option name="METHOD_PARAMETERS_WRAP" value="1" />
    <option name="EXTENDS_LIST_WRAP" value="1" />
    <option name="BINARY_OPERATION_WRAP" value="1" />
    <option name="BINARY_OPERATION_SIGN_ON_NEXT_LINE" value="true" />
    <option name="TERNARY_OPERATION_WRAP" value="1" />
    <option name="TERNARY_OPERATION_SIGNS_ON_NEXT_LINE" value="true" />
    <option name="FOR_STATEMENT_WRAP" value="1" />
    <option name="ARRAY_INITIALIZER_WRAP" value="1" />
    <option name="IF_BRACE_FORCE" value="3" />
    <option name="DOWHILE_BRACE_FORCE" value="3" />
    <option name="WHILE_BRACE_FORCE" value="3" />
    <option name="FOR_BRACE_FORCE" value="3" />
    <option name="PARENT_SETTINGS_INSTALLED" value="true" />
  </codeStyleSettings>
  <codeStyleSettings language="HTML">
    <indentOptions>
      <option name="INDENT_SIZE" value="2" />
      <option name="CONTINUATION_INDENT_SIZE" value="4" />
      <option name="TAB_SIZE" value="2" />
    </indentOptions>
  </codeStyleSettings>
  <codeStyleSettings language="JAVA">
    <option name="KEEP_CONTROL_STATEMENT_IN_ONE_LINE" value="false" />
    <option name="KEEP_BLANK_LINES_IN_CODE" value="1" />
    <option name="BLANK_LINES_AFTER_CLASS_HEADER" value="1" />
    <option name="ALIGN_MULTILINE_PARAMETERS" value="false" />
    <option name="ALIGN_MULTILINE_RESOURCES" value="false" />
    <option name="ALIGN_MULTILINE_FOR" value="false" />
    <option name="CALL_PARAMETERS_WRAP" value="1" />
    <option name="METHOD_PARAMETERS_WRAP" value="1" />
    <option name="EXTENDS_LIST_WRAP" value="1" />
    <option name="THROWS_KEYWORD_WRAP" value="1" />
    <option name="METHOD_CALL_CHAIN_WRAP" value="1" />
    <option name="BINARY_OPERATION_WRAP" value="1" />
    <option name="BINARY_OPERATION_SIGN_ON_NEXT_LINE" value="true" />
    <option name="TERNARY_OPERATION_WRAP" value="1" />
    <option name="TERNARY_OPERATION_SIGNS_ON_NEXT_LINE" value="true" />
    <option name="FOR_STATEMENT_WRAP" value="1" />
    <option name="ARRAY_INITIALIZER_WRAP" value="1" />
    <option name="WRAP_COMMENTS" value="true" />
    <option name="IF_BRACE_FORCE" value="3" />
    <option name="DOWHILE_BRACE_FORCE" value="3" />
    <option name="WHILE_BRACE_FORCE" value="3" />
    <option name="FOR_BRACE_FORCE" value="3" />
    <option name="PARENT_SETTINGS_INSTALLED" value="true" />
    <indentOptions>
      <option name="INDENT_SIZE" value="2" />
      <option name="CONTINUATION_INDENT_SIZE" value="4" />
      <option name="TAB_SIZE" value="2" />
    </indentOptions>
  </codeStyleSettings>
  <codeStyleSettings language="JSON">
    <indentOptions>
      <option name="CONTINUATION_INDENT_SIZE" value="4" />
      <option name="TAB_SIZE" value="2" />
    </indentOptions>
  </codeStyleSettings>
  <codeStyleSettings language="JavaScript">
    <option name="RIGHT_MARGIN" value="80" />
    <option name="KEEP_BLANK_LINES_IN_CODE" value="1" />
    <option name="ALIGN_MULTILINE_PARAMETERS" value="false" />
    <option name="ALIGN_MULTILINE_FOR" value="false" />
    <option name="CALL_PARAMETERS_WRAP" value="1" />
    <option name="METHOD_PARAMETERS_WRAP" value="1" />
    <option name="BINARY_OPERATION_WRAP" value="1" />
    <option name="BINARY_OPERATION_SIGN_ON_NEXT_LINE" value="true" />
    <option name="TERNARY_OPERATION_WRAP" value="1" />
    <option name="TERNARY_OPERATION_SIGNS_ON_NEXT_LINE" value="true" />
    <option name="FOR_STATEMENT_WRAP" value="1" />
    <option name="ARRAY_INITIALIZER_WRAP" value="1" />
    <option name="IF_BRACE_FORCE" value="3" />
    <option name="DOWHILE_BRACE_FORCE" value="3" />
    <option name="WHILE_BRACE_FORCE" value="3" />
    <option name="FOR_BRACE_FORCE" value="3" />
    <option name="PARENT_SETTINGS_INSTALLED" value="true" />
    <indentOptions>
      <option name="INDENT_SIZE" value="2" />
      <option name="TAB_SIZE" value="2" />
    </indentOptions>
  </codeStyleSettings>
  <codeStyleSettings language="PROTO">
    <option name="RIGHT_MARGIN" value="80" />
    <indentOptions>
      <option name="INDENT_SIZE" value="2" />
      <option name="CONTINUATION_INDENT_SIZE" value="2" />
      <option name="TAB_SIZE" value="2" />
    </indentOptions>
  </codeStyleSettings>
  <codeStyleSettings language="protobuf">
    <option name="RIGHT_MARGIN" value="80" />
    <indentOptions>
      <option name="INDENT_SIZE" value="2" />
      <option name="CONTINUATION_INDENT_SIZE" value="2" />
      <option name="TAB_SIZE" value="2" />
    </indentOptions>
  </codeStyleSettings>
  <codeStyleSettings language="Python">
    <option name="KEEP_BLANK_LINES_IN_CODE" value="1" />
    <option name="RIGHT_MARGIN" value="80" />
    <option name="ALIGN_MULTILINE_PARAMETERS" value="false" />
    <option name="PARENT_SETTINGS_INSTALLED" value="true" />
    <indentOptions>
      <option name="INDENT_SIZE" value="2" />
      <option name="CONTINUATION_INDENT_SIZE" value="4" />
      <option name="TAB_SIZE" value="2" />
    </indentOptions>
  </codeStyleSettings>
  <codeStyleSettings language="SASS">
    <indentOptions>
      <option name="CONTINUATION_INDENT_SIZE" value="4" />
      <option name="TAB_SIZE" value="2" />
    </indentOptions>
  </codeStyleSettings>
  <codeStyleSettings language="SCSS">
    <indentOptions>
      <option name="CONTINUATION_INDENT_SIZE" value="4" />
      <option name="TAB_SIZE" value="2" />
    </indentOptions>
  </codeStyleSettings>
  <codeStyleSettings language="TypeScript">
    <indentOptions>
      <option name="INDENT_SIZE" value="2" />
      <option name="TAB_SIZE" value="2" />
    </indentOptions>
  </codeStyleSettings>
  <codeStyleSettings language="XML">
    <indentOptions>
      <option name="INDENT_SIZE" value="2" />
      <option name="CONTINUATION_INDENT_SIZE" value="2" />
      <option name="TAB_SIZE" value="2" />
    </indentOptions>
    <arrangement>
      <rules>
        <section>
          <rule>
            <match>
              <AND>
                <NAME>xmlns:android</NAME>
                <XML_ATTRIBUTE />
                <XML_NAMESPACE>^$</XML_NAMESPACE>
              </AND>
            </match>
          </rule>
        </section>
        <section>
          <rule>
            <match>
              <AND>
                <NAME>xmlns:.*</NAME>
                <XML_ATTRIBUTE />
                <XML_NAMESPACE>^$</XML_NAMESPACE>
              </AND>
            </match>
            <order>BY_NAME</order>
          </rule>
        </section>
        <section>
          <rule>
            <match>
              <AND>
                <NAME>.*:id</NAME>
                <XML_ATTRIBUTE />
                <XML_NAMESPACE>http://schemas.android.com/apk/res/android</XML_NAMESPACE>
              </AND>
            </match>
          </rule>
        </section>
        <section>
          <rule>
            <match>
              <AND>
                <NAME>style</NAME>
                <XML_ATTRIBUTE />
                <XML_NAMESPACE>^$</XML_NAMESPACE>
              </AND>
            </match>
          </rule>
        </section>
        <section>
          <rule>
            <match>
              <AND>
                <NAME>.*</NAME>
                <XML_ATTRIBUTE />
                <XML_NAMESPACE>^$</XML_NAMESPACE>
              </AND>
            </match>
            <order>BY_NAME</order>
          </rule>
        </section>
        <section>
          <rule>
            <match>
              <AND>
                <NAME>.*:.*Style</NAME>
                <XML_ATTRIBUTE />
                <XML_NAMESPACE>http://schemas.android.com/apk/res/android</XML_NAMESPACE>
              </AND>
            </match>
            <order>BY_NAME</order>
          </rule>
        </section>
        <section>
          <rule>
            <match>
              <AND>
                <NAME>.*:layout_width</NAME>
                <XML_ATTRIBUTE />
                <XML_NAMESPACE>http://schemas.android.com/apk/res/android</XML_NAMESPACE>
              </AND>
            </match>
          </rule>
        </section>
        <section>
          <rule>
            <match>
              <AND>
                <NAME>.*:layout_height</NAME>
                <XML_ATTRIBUTE />
                <XML_NAMESPACE>http://schemas.android.com/apk/res/android</XML_NAMESPACE>
              </AND>
            </match>
          </rule>
        </section>
        <section>
          <rule>
            <match>
              <AND>
                <NAME>.*:layout_weight</NAME>
                <XML_ATTRIBUTE />
                <XML_NAMESPACE>http://schemas.android.com/apk/res/android</XML_NAMESPACE>
              </AND>
            </match>
          </rule>
        </section>
        <section>
          <rule>
            <match>
              <AND>
                <NAME>.*:layout_margin</NAME>
                <XML_ATTRIBUTE />
                <XML_NAMESPACE>http://schemas.android.com/apk/res/android</XML_NAMESPACE>
              </AND>
            </match>
          </rule>
        </section>
        <section>
          <rule>
            <match>
              <AND>
                <NAME>.*:layout_marginTop</NAME>
                <XML_ATTRIBUTE />
                <XML_NAMESPACE>http://schemas.android.com/apk/res/android</XML_NAMESPACE>
              </AND>
            </match>
          </rule>
        </section>
        <section>
          <rule>
            <match>
              <AND>
                <NAME>.*:layout_marginBottom</NAME>
                <XML_ATTRIBUTE />
                <XML_NAMESPACE>http://schemas.android.com/apk/res/android</XML_NAMESPACE>
              </AND>
            </match>
          </rule>
        </section>
        <section>
          <rule>
            <match>
              <AND>
                <NAME>.*:layout_marginStart</NAME>
                <XML_ATTRIBUTE />
                <XML_NAMESPACE>http://schemas.android.com/apk/res/android</XML_NAMESPACE>
              </AND>
            </match>
          </rule>
        </section>
        <section>
          <rule>
            <match>
              <AND>
                <NAME>.*:layout_marginEnd</NAME>
                <XML_ATTRIBUTE />
                <XML_NAMESPACE>http://schemas.android.com/apk/res/android</XML_NAMESPACE>
              </AND>
            </match>
          </rule>
        </section>
        <section>
          <rule>
            <match>
              <AND>
                <NAME>.*:layout_marginLeft</NAME>
                <XML_ATTRIBUTE />
                <XML_NAMESPACE>http://schemas.android.com/apk/res/android</XML_NAMESPACE>
              </AND>
            </match>
          </rule>
        </section>
        <section>
          <rule>
            <match>
              <AND>
                <NAME>.*:layout_marginRight</NAME>
                <XML_ATTRIBUTE />
                <XML_NAMESPACE>http://schemas.android.com/apk/res/android</XML_NAMESPACE>
              </AND>
            </match>
          </rule>
        </section>
        <section>
          <rule>
            <match>
              <AND>
                <NAME>.*:layout_.*</NAME>
                <XML_ATTRIBUTE />
                <XML_NAMESPACE>http://schemas.android.com/apk/res/android</XML_NAMESPACE>
              </AND>
            </match>
            <order>BY_NAME</order>
          </rule>
        </section>
        <section>
          <rule>
            <match>
              <AND>
                <NAME>.*:padding</NAME>
                <XML_ATTRIBUTE />
                <XML_NAMESPACE>http://schemas.android.com/apk/res/android</XML_NAMESPACE>
              </AND>
            </match>
          </rule>
        </section>
        <section>
          <rule>
            <match>
              <AND>
                <NAME>.*:paddingTop</NAME>
                <XML_ATTRIBUTE />
                <XML_NAMESPACE>http://schemas.android.com/apk/res/android</XML_NAMESPACE>
              </AND>
            </match>
          </rule>
        </section>
        <section>
          <rule>
            <match>
              <AND>
                <NAME>.*:paddingBottom</NAME>
                <XML_ATTRIBUTE />
                <XML_NAMESPACE>http://schemas.android.com/apk/res/android</XML_NAMESPACE>
              </AND>
            </match>
          </rule>
        </section>
        <section>
          <rule>
            <match>
              <AND>
                <NAME>.*:paddingStart</NAME>
                <XML_ATTRIBUTE />
                <XML_NAMESPACE>http://schemas.android.com/apk/res/android</XML_NAMESPACE>
              </AND>
            </match>
          </rule>
        </section>
        <section>
          <rule>
            <match>
              <AND>
                <NAME>.*:paddingEnd</NAME>
                <XML_ATTRIBUTE />
                <XML_NAMESPACE>http://schemas.android.com/apk/res/android</XML_NAMESPACE>
              </AND>
            </match>
          </rule>
        </section>
        <section>
          <rule>
            <match>
              <AND>
                <NAME>.*:paddingLeft</NAME>
                <XML_ATTRIBUTE />
                <XML_NAMESPACE>http://schemas.android.com/apk/res/android</XML_NAMESPACE>
              </AND>
            </match>
          </rule>
        </section>
        <section>
          <rule>
            <match>
              <AND>
                <NAME>.*:paddingRight</NAME>
                <XML_ATTRIBUTE />
                <XML_NAMESPACE>http://schemas.android.com/apk/res/android</XML_NAMESPACE>
              </AND>
            </match>
          </rule>
        </section>
        <section>
          <rule>
            <match>
              <AND>
                <NAME>.*</NAME>
                <XML_NAMESPACE>http://schemas.android.com/apk/res/android</XML_NAMESPACE>
              </AND>
            </match>
            <order>BY_NAME</order>
          </rule>
        </section>
        <section>
          <rule>
            <match>
              <AND>
                <NAME>.*</NAME>
                <XML_NAMESPACE>http://schemas.android.com/apk/res-auto</XML_NAMESPACE>
              </AND>
            </match>
            <order>BY_NAME</order>
          </rule>
        </section>
        <section>
          <rule>
            <match>
              <AND>
                <NAME>.*</NAME>
                <XML_NAMESPACE>http://schemas.android.com/tools</XML_NAMESPACE>
              </AND>
            </match>
            <order>BY_NAME</order>
          </rule>
        </section>
        <section>
          <rule>
            <match>
              <AND>
                <NAME>.*</NAME>
                <XML_NAMESPACE>.*</XML_NAMESPACE>
              </AND>
            </match>
            <order>BY_NAME</order>
          </rule>
        </section>
      </rules>
    </arrangement>
  </codeStyleSettings>
  <Objective-C>
    <option name="INDENT_NAMESPACE_MEMBERS" value="0" />
    <option name="INDENT_C_STRUCT_MEMBERS" value="2" />
    <option name="INDENT_CLASS_MEMBERS" value="2" />
    <option name="INDENT_VISIBILITY_KEYWORDS" value="1" />
    <option name="INDENT_INSIDE_CODE_BLOCK" value="2" />
    <option name="KEEP_STRUCTURES_IN_ONE_LINE" value="true" />
    <option name="FUNCTION_PARAMETERS_WRAP" value="5" />
    <option name="FUNCTION_CALL_ARGUMENTS_WRAP" value="5" />
    <option name="TEMPLATE_CALL_ARGUMENTS_WRAP" value="5" />
    <option name="TEMPLATE_CALL_ARGUMENTS_ALIGN_MULTILINE" value="true" />
    <option name="ALIGN_INIT_LIST_IN_COLUMNS" value="false" />
    <option name="SPACE_BEFORE_SUPERCLASS_COLON" value="false" />
  </Objective-C>
  <Objective-C-extensions>
    <option name="GENERATE_INSTANCE_VARIABLES_FOR_PROPERTIES" value="ASK" />
    <option name="RELEASE_STYLE" value="IVAR" />
    <option name="TYPE_QUALIFIERS_PLACEMENT" value="BEFORE" />
    <file>
      <option name="com.jetbrains.cidr.lang.util.OCDeclarationKind" value="Import" />
      <option name="com.jetbrains.cidr.lang.util.OCDeclarationKind" value="Macro" />
      <option name="com.jetbrains.cidr.lang.util.OCDeclarationKind" value="Typedef" />
      <option name="com.jetbrains.cidr.lang.util.OCDeclarationKind" value="Enum" />
      <option name="com.jetbrains.cidr.lang.util.OCDeclarationKind" value="Constant" />
      <option name="com.jetbrains.cidr.lang.util.OCDeclarationKind" value="Global" />
      <option name="com.jetbrains.cidr.lang.util.OCDeclarationKind" value="Struct" />
      <option name="com.jetbrains.cidr.lang.util.OCDeclarationKind" value="FunctionPredecl" />
      <option name="com.jetbrains.cidr.lang.util.OCDeclarationKind" value="Function" />
    </file>
    <class>
      <option name="com.jetbrains.cidr.lang.util.OCDeclarationKind" value="Property" />
      <option name="com.jetbrains.cidr.lang.util.OCDeclarationKind" value="Synthesize" />
      <option name="com.jetbrains.cidr.lang.util.OCDeclarationKind" value="InitMethod" />
      <option name="com.jetbrains.cidr.lang.util.OCDeclarationKind" value="StaticMethod" />
      <option name="com.jetbrains.cidr.lang.util.OCDeclarationKind" value="InstanceMethod" />
      <option name="com.jetbrains.cidr.lang.util.OCDeclarationKind" value="DeallocMethod" />
    </class>
    <extensions>
      <pair source="cc" header="h" />
      <pair source="c" header="h" />
    </extensions>
  </Objective-C-extensions>
  <codeStyleSettings language="ObjectiveC">
    <option name="RIGHT_MARGIN" value="80" />
    <option name="KEEP_BLANK_LINES_BEFORE_RBRACE" value="1" />
    <option name="BLANK_LINES_BEFORE_IMPORTS" value="0" />
    <option name="BLANK_LINES_AFTER_IMPORTS" value="0" />
    <option name="BLANK_LINES_AROUND_CLASS" value="0" />
    <option name="BLANK_LINES_AROUND_METHOD" value="0" />
    <option name="BLANK_LINES_AROUND_METHOD_IN_INTERFACE" value="0" />
    <option name="ALIGN_MULTILINE_BINARY_OPERATION" value="false" />
    <option name="BINARY_OPERATION_SIGN_ON_NEXT_LINE" value="true" />
    <option name="FOR_STATEMENT_WRAP" value="1" />
    <option name="ASSIGNMENT_WRAP" value="1" />
    <indentOptions>
      <option name="INDENT_SIZE" value="2" />
      <option name="CONTINUATION_INDENT_SIZE" value="4" />
    </indentOptions>
  </codeStyleSettings>
</code_scheme>

To import this, save the above file somewhere, and in the IDE go to settings -> Code Style -> Java -> Click on gear icon -> Import scheme -> Intellij idea code style XML, and select the file.

Next we'll need to set some environment variables for the different config setups.

I created an 'Application' config, which I use to run the app from within IntelliJ, and a 'JAR Application`. Both use the environment variables:

DATABASE_HOST=localhost
DATABASE_PORT=3306
DATABASE_USER=mark
DATABASE_PASSWORD=topsecret
DATABASE_NAME=sample
GOOGLE_OAUTH2_CLIENT_ID=shhh.apps.googleusercontent.com
GOOGLE_OAUTH2_CLIENT_SECRET=secret

The Path to JAR in the Jar application for me is C:\Users\mark\IdeaProjects\SampleProject\target\service.jar

Once that's done, everything should work pretty much out of the box. You can run the various maven commands

If you run the application from within IntelliJ, you'll be able to hit the API endpoints as well as the Swagger UI (http://localhost:8080/swagger-ui.html). Trying to hit the site root (/) won't work, as the front-end code doesn't live inside the java codebase.

When running the package maven command, there's an extra goodie. It will automatically produce a production build of the React app and place it in the correct location to be packaged up in the fat JAR.

So if you want do a complete test run, you can run the maven package command, then run the jar from the IDE, and the entire app including front-end should be available on http://localhost:8080.

VS Code

I've installed NodeJS on Windows 10, and it seems to work well with this setup. I've also used WSL (Windows Subsystem for Linux), however WSL is very very sluggish and I don't really recommend it for front-end development. A similar setup with MacOS/brew should also be trivial to setup.

The front-end workflow works out of the box with VS Code in this setup. You can launch the NPM scripts from within the IDE and hit the localhost endpoint (http://localhost:3000) to see your app live-reload while you're coding. Assuming you're running the back-end, the entire app should work.

As I've enabled CSRF on the backend, you'll need to login to the backend before you try to hit the front-end code (in order to have the cookie for the CSRF token). To do so, you can simply visit any of the api endpoints or the swagger UI (eg: http://localhost:8080/swagger-ui.html). Once the google auth is done, you can head on over to http://localhost:3000 to hit the app running from nodejs.

Database

I've dumped the database table structure and some test data in the src\test\fixtures\data.sql file.

Static code analysis

As mentioned in the intro, I've codified some tooling in this setup to enforce styling as well as analyze the code for anti-patterns, programming errors, copy paste detection, unit test code coverage, and dependency vulnerabilities.

I've only covered the back-end portion so far, I'll see if I can modify the pipeline to do the same withe front-end build.

Unit tests

mvn test

Unit test code coverage

mvn jacoco:check

You can then open the report in your browser in the target\site\jacoco\index.html, should look something like this:

null

You can click through the links to view the covered/uncovered part of each file:

null

OWASP dependancy vulnerability check

mvn dependency-check:aggregate

Coding style

mvn checkstyle:check

Project mess detection & copy paste detection

mvn pmd:check

Spotbugs

mvn spotbugs:check

DevOps

This application follows all the best practices of the 12-factor app. The output of the build process (mvn package) produces a self-contained jar file (target/service.jar) that can easily be thrown into a docker container with a JRE.

All configuration of the application is done via the environment variables.

Alerting can consume the Spring actuator endpoints to retrieve metrics from the runtime and should provide a good level of visibility into the health of the application.

TODO

I'd eventually like to get Spring Boot admin working (client/server)
Some unit tests. As a general rule I don't like writing lots of unit tests that just end up testing against mocks when there is no business logic in the code. As there are only 2 IF statements in the back-end, I didn't feel like it was worth it. I might just add some arbitrary complexity and up the coverage ratio to prove the point.

Mark Steele
Cogito Interruptus Vulgaris

Mark Steele
Cogito Interruptus Vulgaris

Spring Boot/React - FullStack Project Template/Tutorial

Backend

Config

Model

Database

App boilerplate

Web Security Configuration

Automatically documenting our APIs

Services

Web Controllers

Scheduled task

Frontend

Setup

Code

OAuth2 Setup

IDE Setup

Back-end

VS Code

Database

Static code analysis

Unit tests

Unit test code coverage

OWASP dependancy vulnerability check

Coding style

Project mess detection & copy paste detection

Spotbugs

DevOps

TODO

Mark Steele Cogito Interruptus Vulgaris

Spring Boot/React - FullStack Project Template/Tutorial

Backend

Config

Model

Database

App boilerplate

Web Security Configuration

Automatically documenting our APIs

Services

Web Controllers

Scheduled task

Frontend

Setup

Code

OAuth2 Setup

IDE Setup

Back-end

VS Code

Database

Static code analysis

Unit tests

Unit test code coverage

OWASP dependancy vulnerability check

Coding style

Project mess detection & copy paste detection

Spotbugs

DevOps

TODO

Mark Steele
Cogito Interruptus Vulgaris
